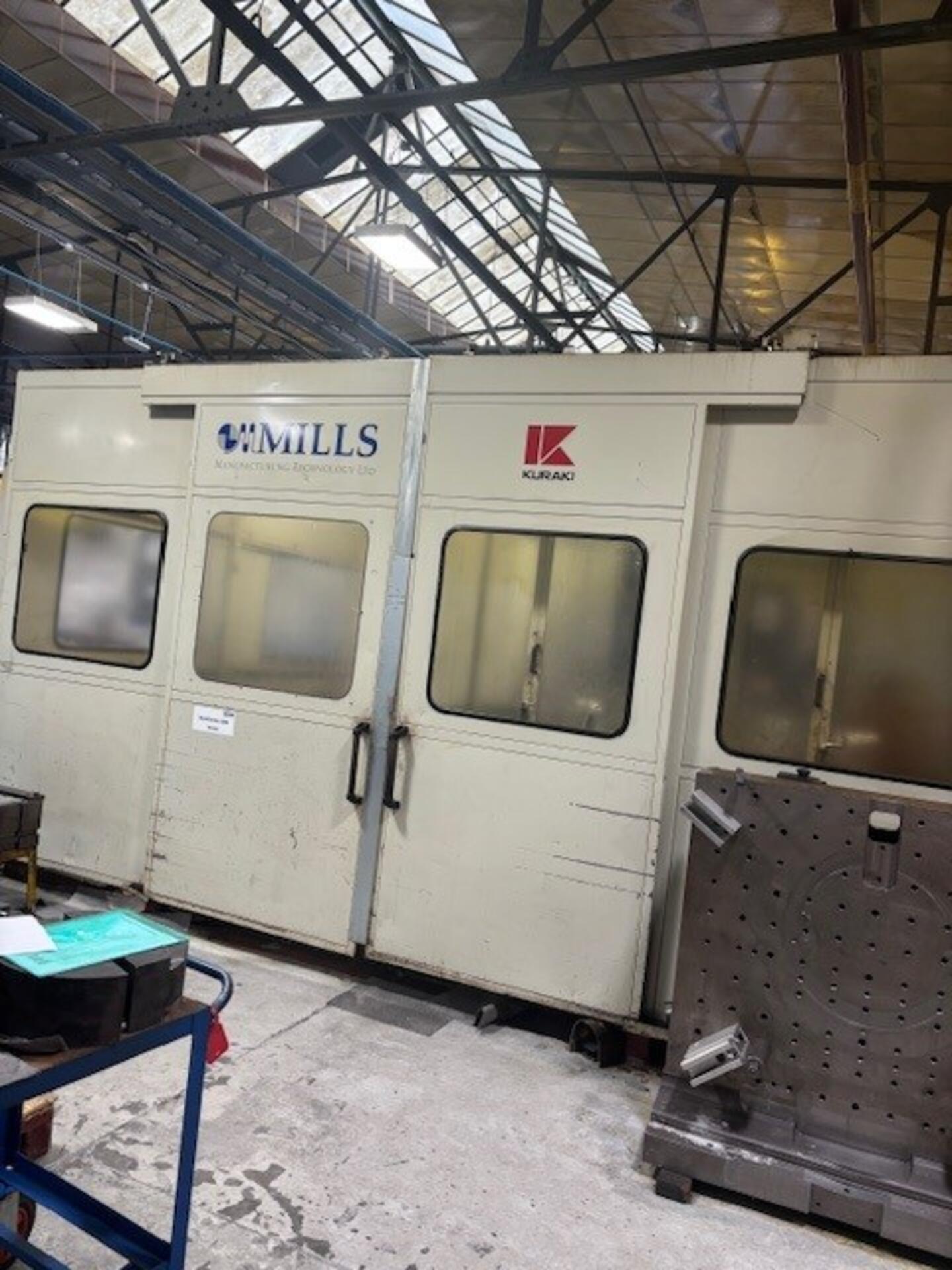

Kuraki KBT 11 WDX-A CNC Horizontal Borer

Code: ST4212

Kuraki Heavy Duty CNC Horizontal Borer

Model: KBT 11 WDX - A

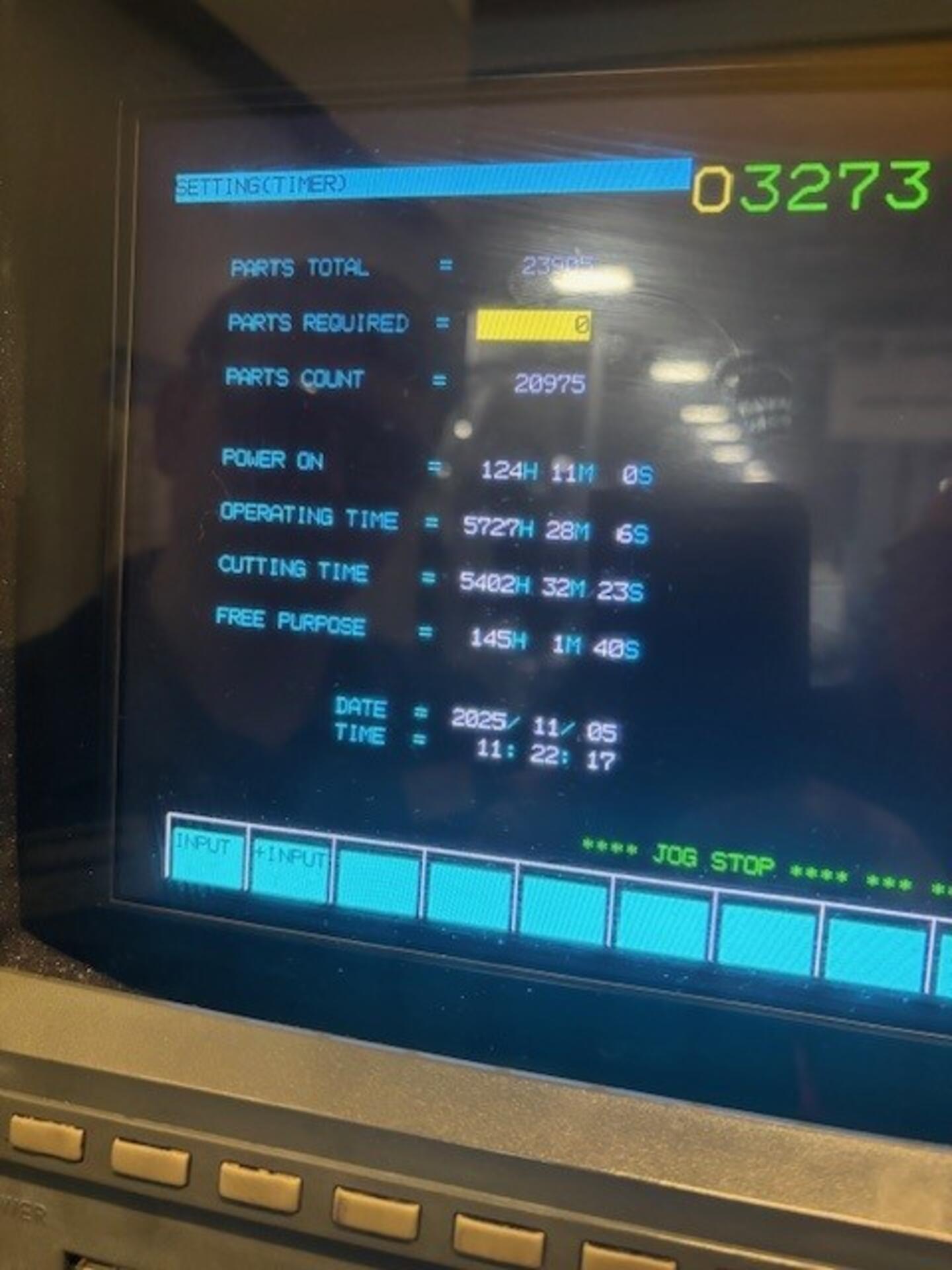

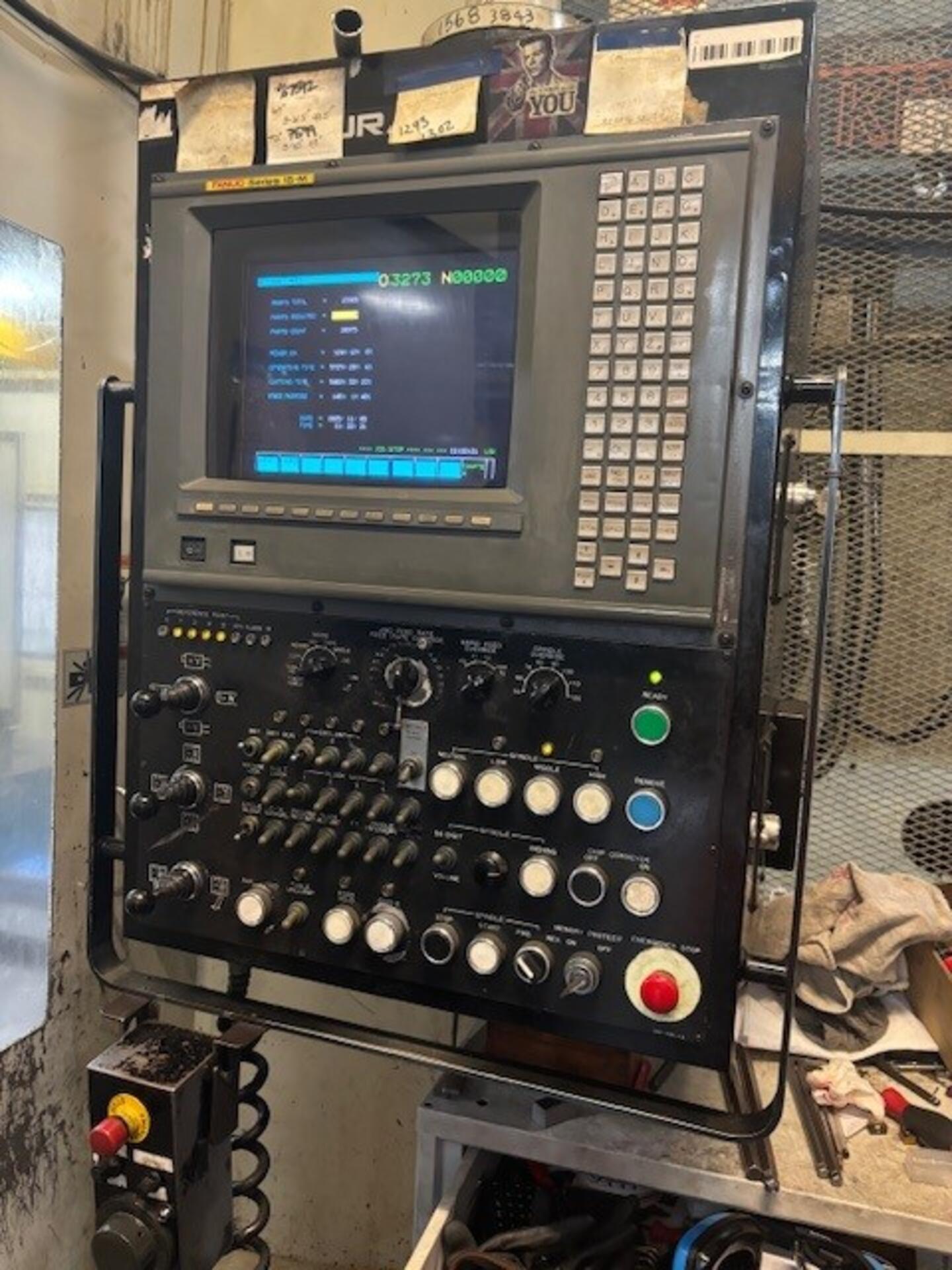

Control: Fanuc Series 15M
Year: 1996

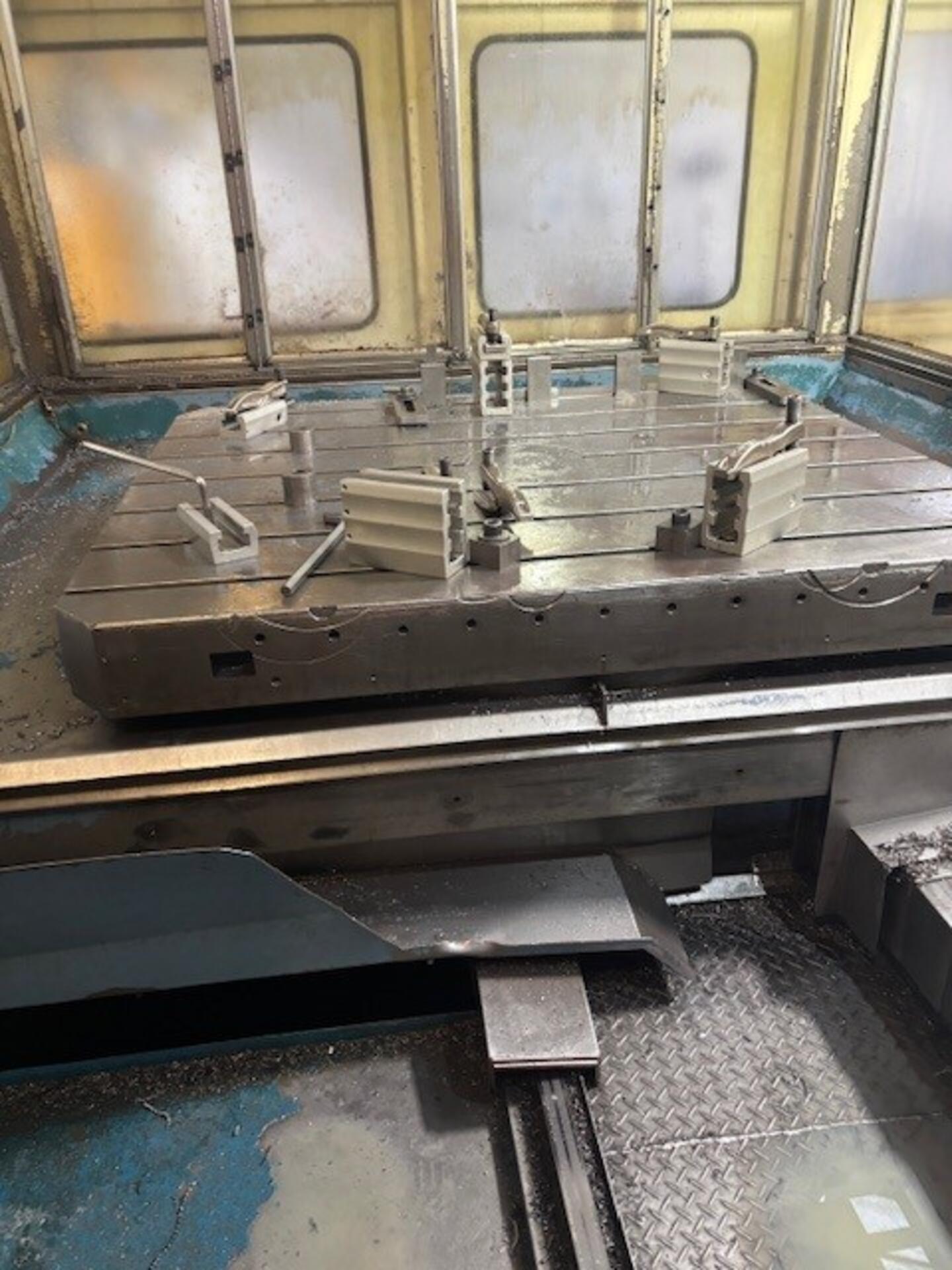

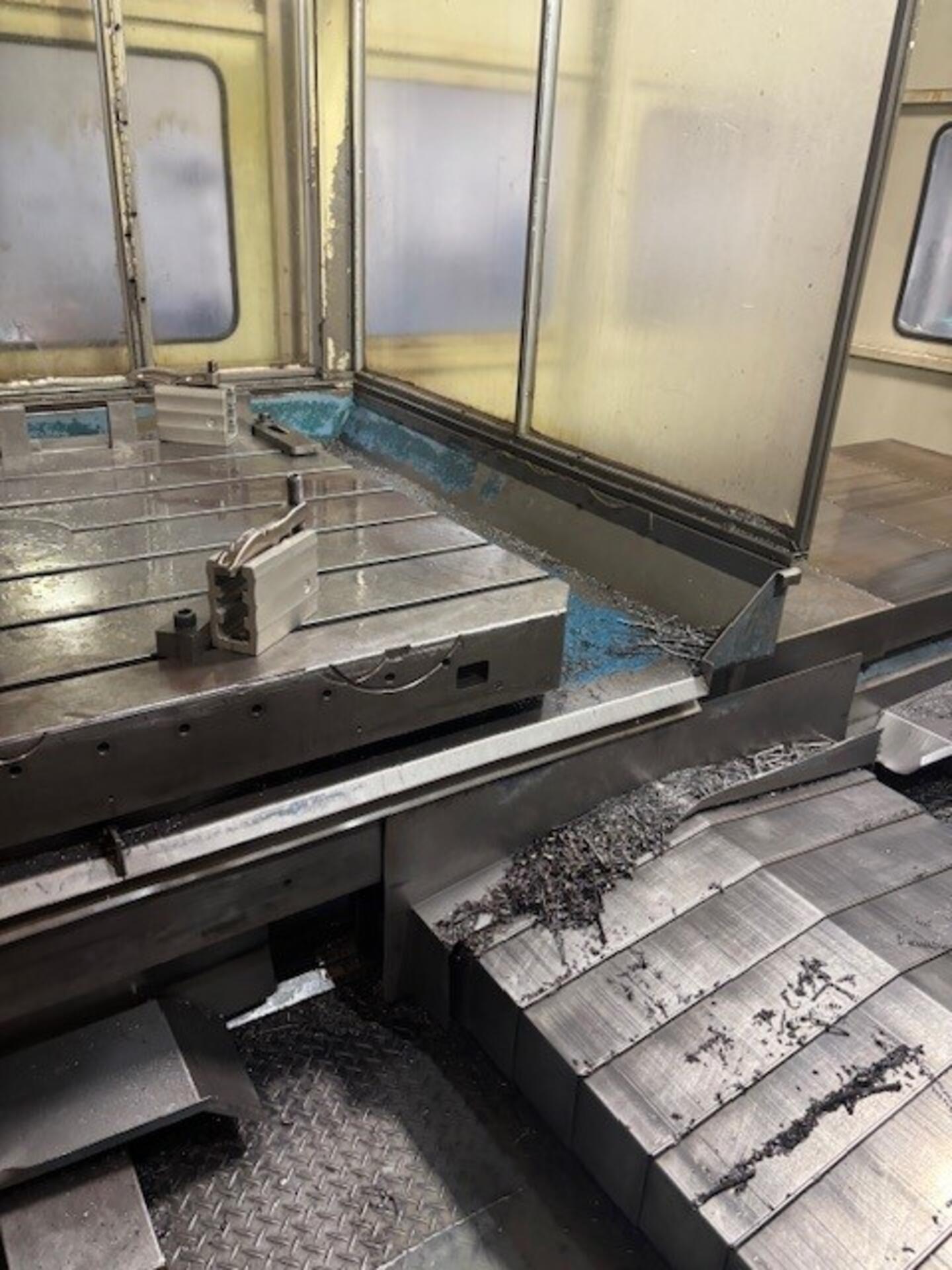

Table Area: 1400 x 1600mm
Table Indexing: 0.001 Degrees (B Axis Rotary)
Table Load 6486 KGS

X Axis Travel: 2000mm
Y Axis Travel: 1500mm
Z Axis Travel: 1450mm
W Axis Travel: 500mm (Spindle)

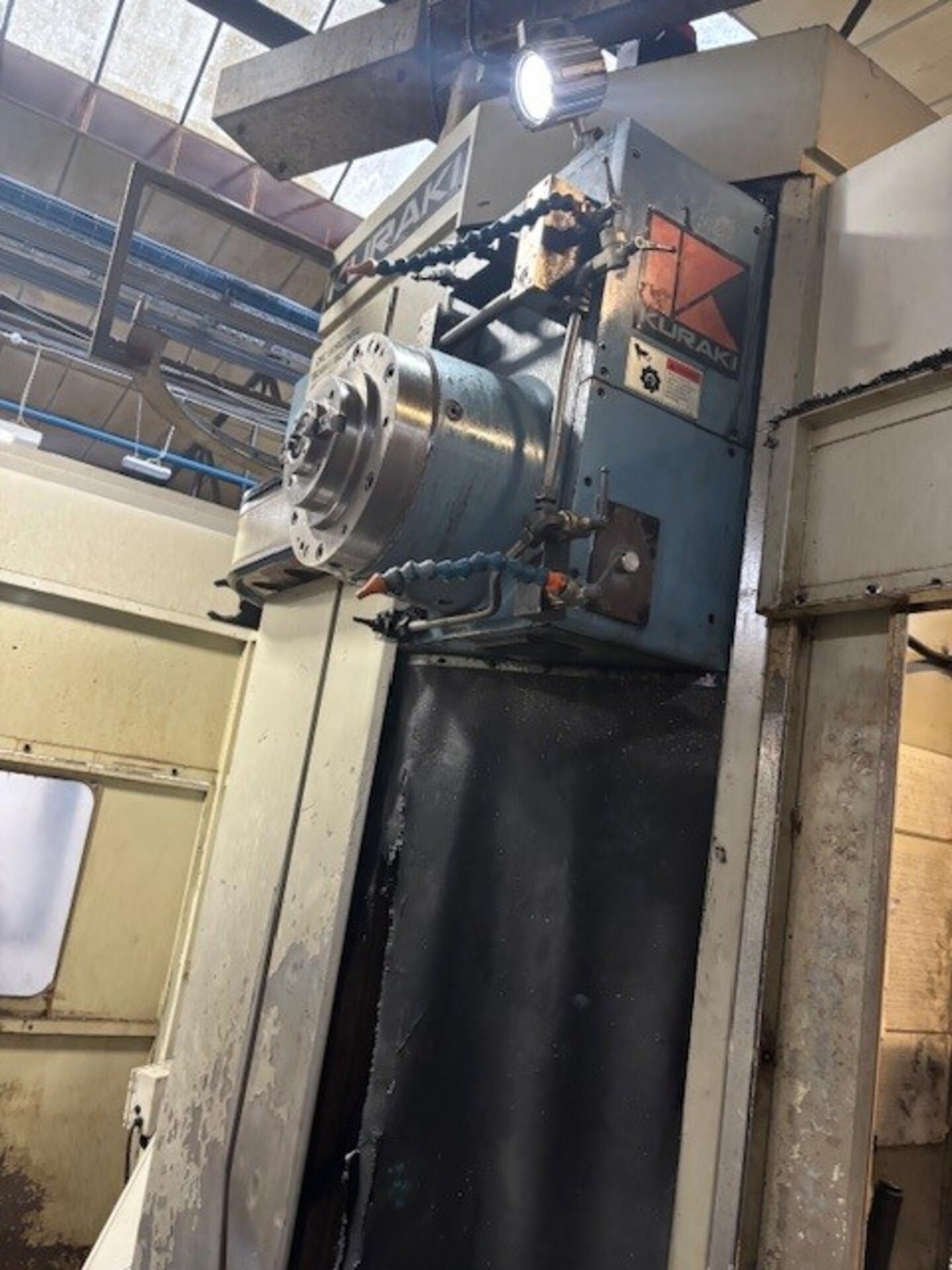

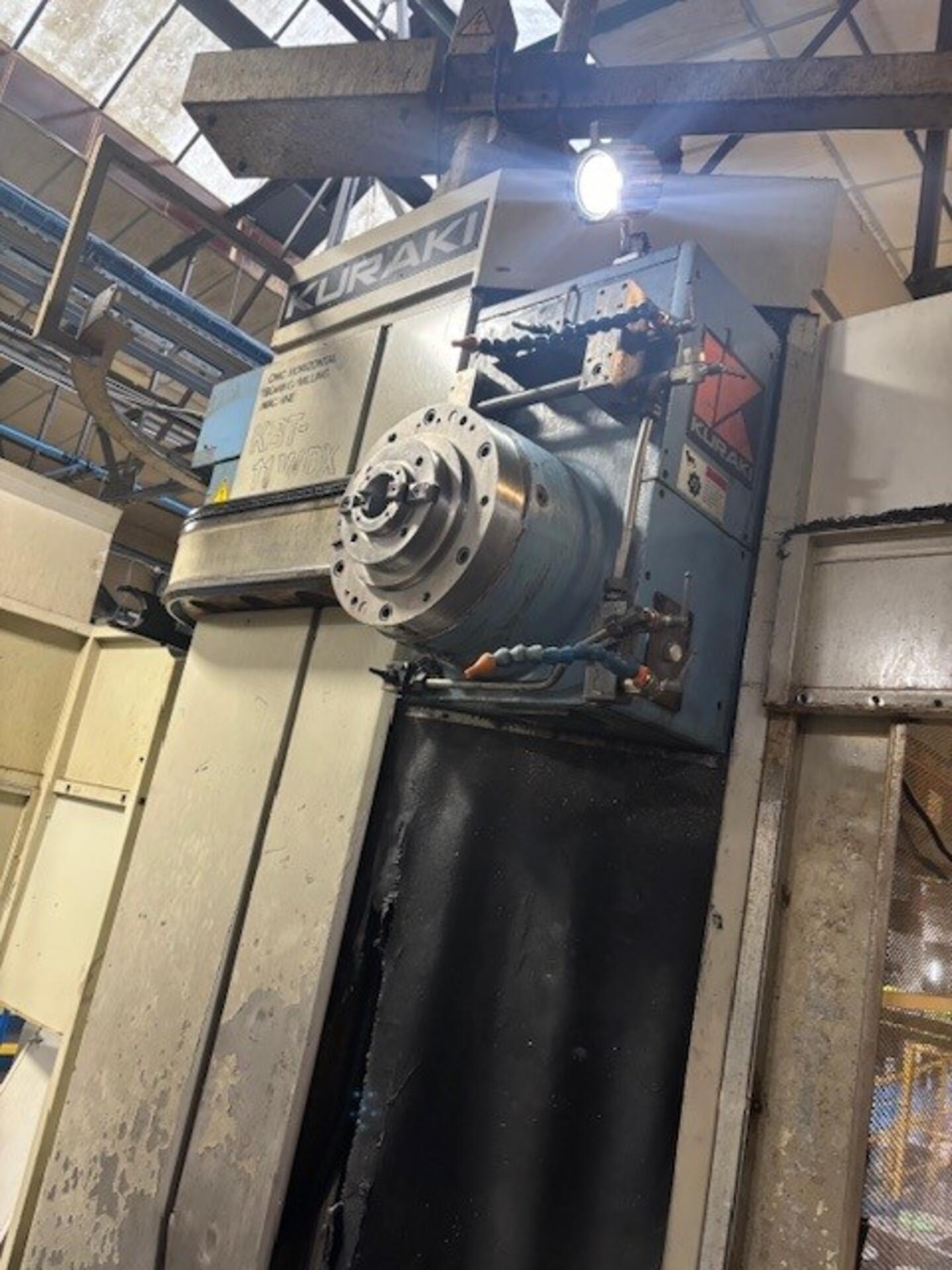

Spindle Diameter: 110mm
Spindle Taper: BT50
Spindle Speeds: 5-3000 RPM (Variable)

40 Station Tool Changer
Swarf Conveyor
Motor: 18-22 KW
