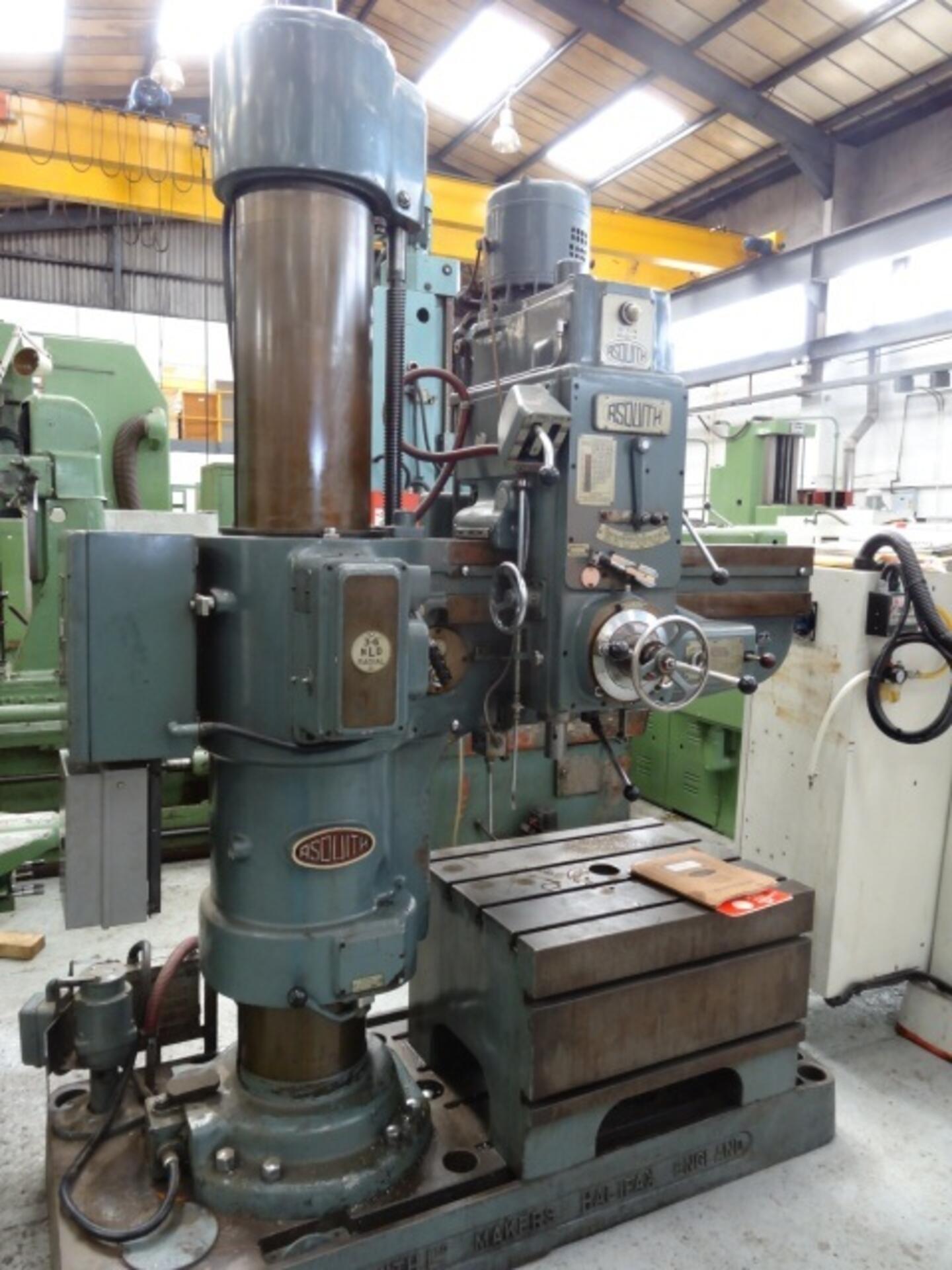

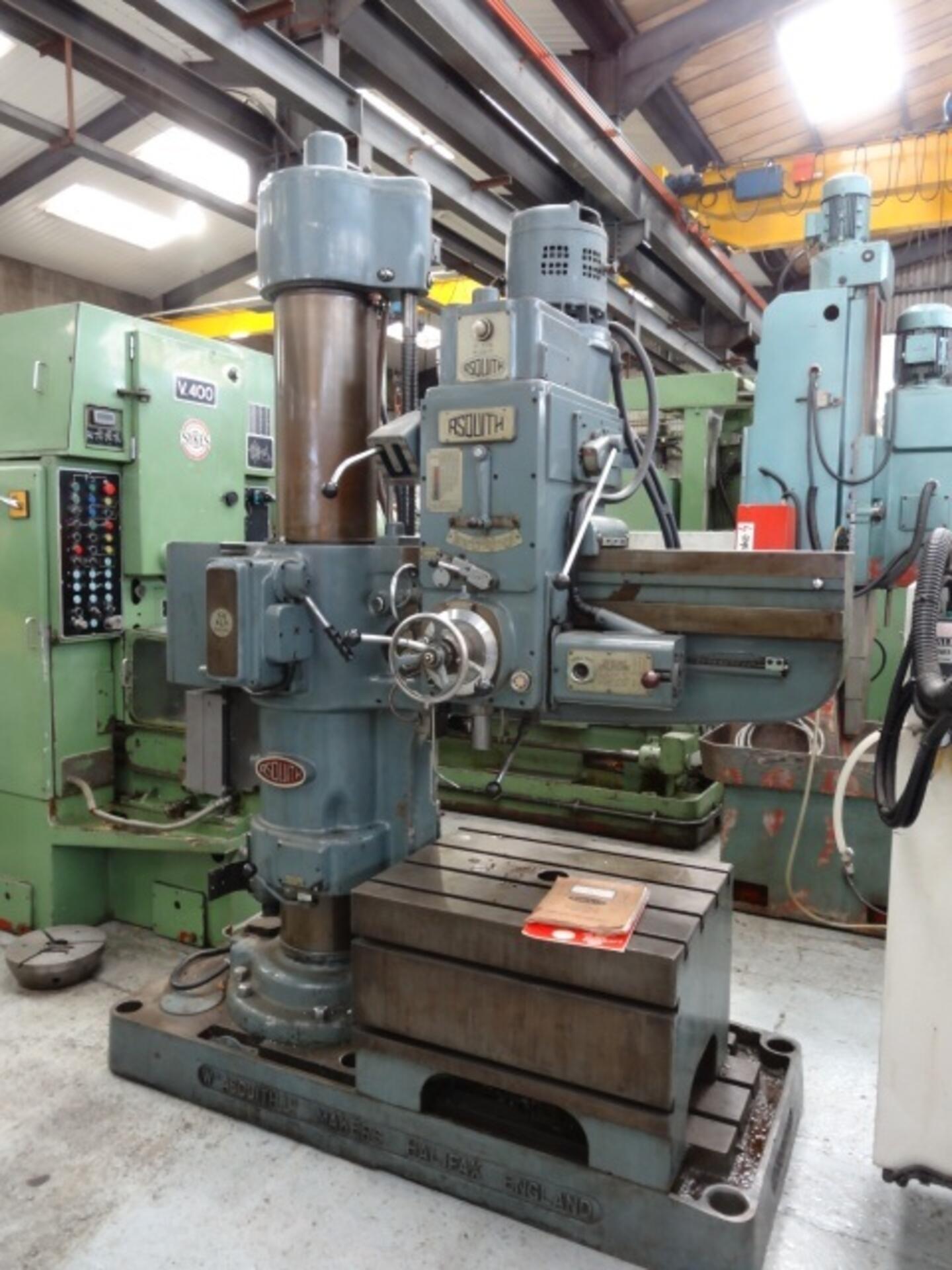

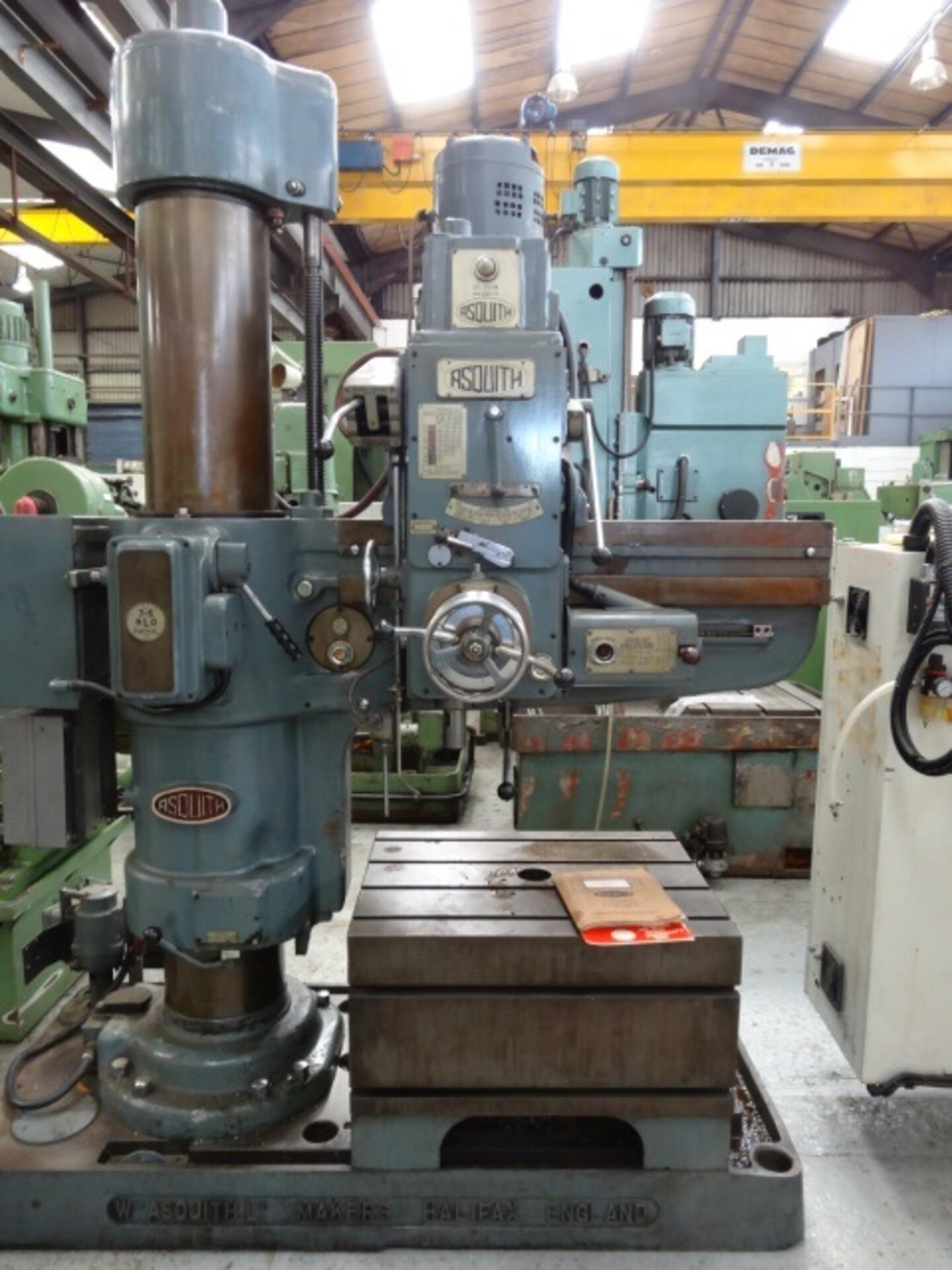

Asquith 3’6” Radial Drill

Code: ST4189

Asquith 3’6” Radial Drill



Spindle Speeds: 60 – 2500rpm

Spindle Taper: 4MT

Spindle Diameter: 50mm

Spindle Feeds: 0.0055 – 0.033 inch per rev

Quill Traverse: 310mm

Spindle To Base Max: 1400mm

Spindle To Base Min: 680mm

Column Diameter: 270mm

Base Dimension: 1800 x 770mm



Motor: 5HP

Electrics: 415v, 3ph, 50 Cycles



Machine With:

Coolant

Safety Brake

Loose Box Table 760 x 610 x 510mm

Fine Hand Feed
